Darton Water Treatment Works

Project Value

£1,900,000

Client Name

Byzak Ltd

Project Type

Civil Engineering

Darton Water Treatment Works

CPC Civils were successfully awarded the Darton Water Treatment Works contract in July 2013 and completed works in April 2014.

CPC have been working on and around water since the mid Nineties and as such have gained a vastly experienced workforce.

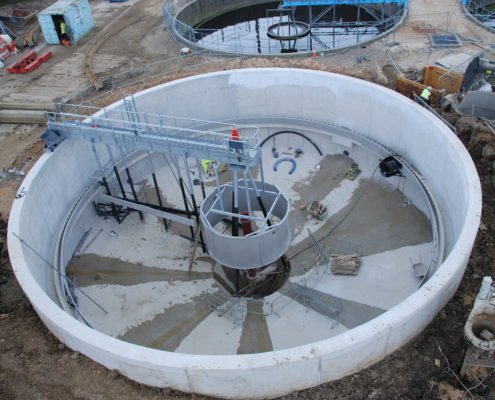

The Darton WTW Project would involve the installation of a Hummus Tank on a Water Treatment Works. This would include a Final Settlement Tank (FST) and Caisson Chamber for the desludge.

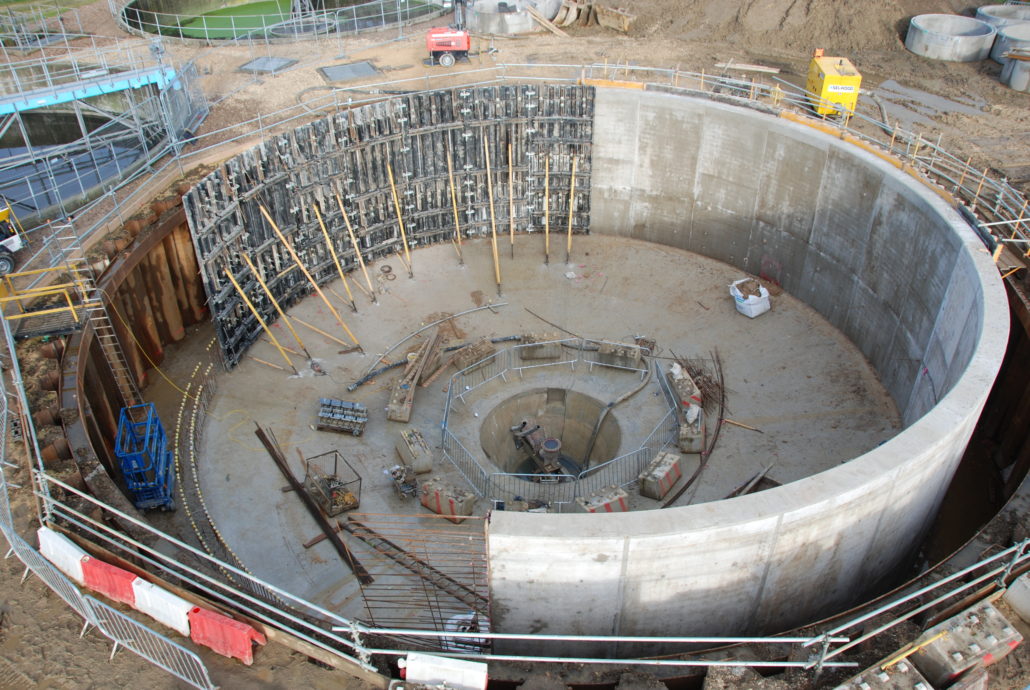

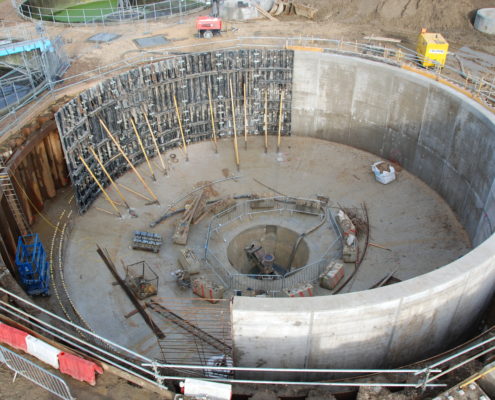

The tank was the construction of a 22 meter diameter and 8 meter deep tank, to allow the treatment of sewerage on the treatment works.

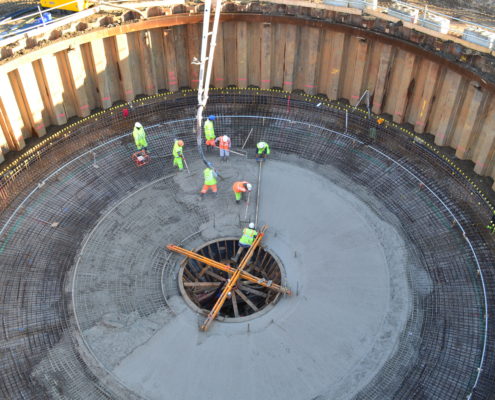

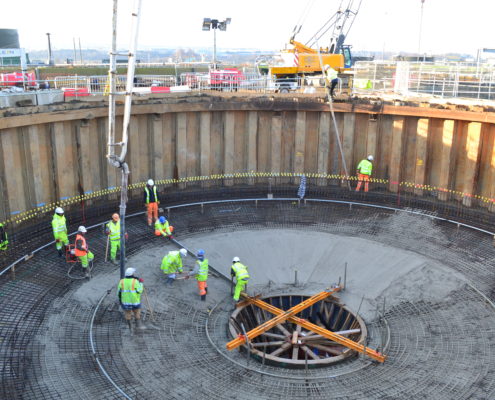

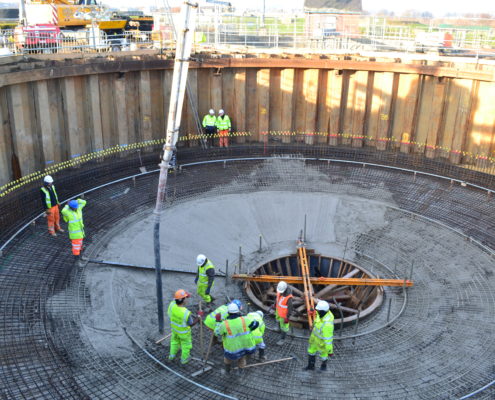

CPC Civils would install sheet pile cofferdam cast into the permanent structure and formed by in-situ concrete. On completion of the structure it was tied into the existing treatment works. The team would complete the tie-in via 450mm diameter ductile iron pipe work.

Darton Water Treatment Works
Darton Water Treatment Works
Darton Water Treatment Works
Darton Water Treatment Works
Darton Water Treatment Works
Darton Water Treatment Works
